Products > H series heavy duty gantry surface grinder

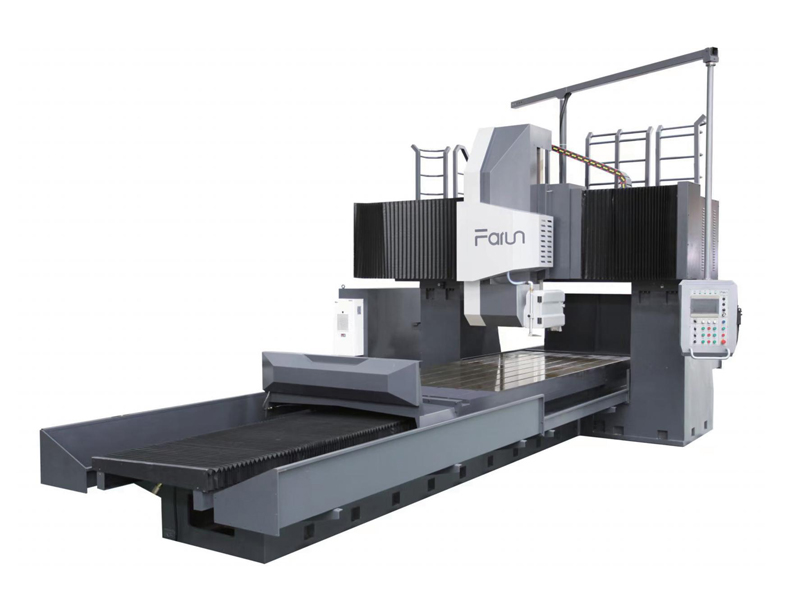

H series heavy duty gantry surface grinder
.jpg "H重型系列龍門平面磨床(1).jpg")
| 主要參數(Specifications) | |||||
| 項目 ITEM/ 機型 MODEL | FSG2200 H | FSG2500 H | FSG3000H | ||
| ·工作范圍 | Working area | ||||
| 工作臺寬度 | Table width | mm | 1800 | 2000 | 2500 |
| 工作臺長度 | Table length | mm | 3000/4000 | 4000/5000/6000/6500 | 4500/6000/8000 |
| 龍門寬度 | Gantry width | mm | 2200 | 2600 | 3200 |
| 加工寬度 | Max.machining width | mm | 2000 | 2400 | 3000 |
| 加工長度 | Max.machinging length | mm | 3000~4000 | 4000~6500 | 4500~8000 |
| 加工高度 | Max.machinging height | mm | 600/800 | 800/1000 | 800/1000 |
| 臥式磨頭 | Horizontal spindle | ||||
| 間歇進給量 | Intermittent feed rate | mm/t | 1~50 | 1~50/2~100 | 2~100 |
| 電子手輪進給量 | Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
| 電機功率 | Spindle motor power | kw | 18.5/22 | 18.5/22/30 | 30 |
| 砂輪尺寸 | Wheel size | mm | 500*100*203 | 500*100*203/600*150*305 | 600*150*305 |
| 主軸轉速 | Spindle speed | r/min | 1323 | 1323/980 | 980 |
